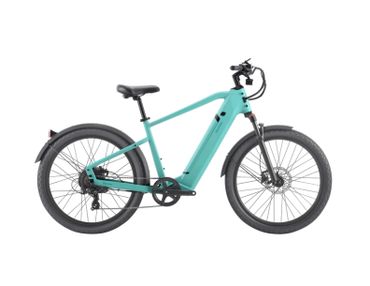

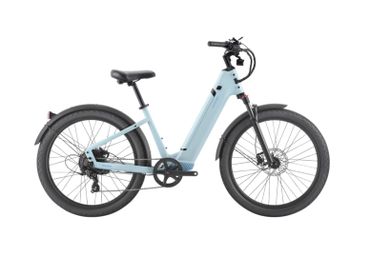

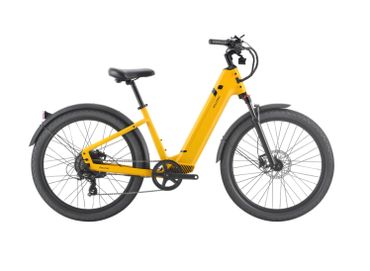

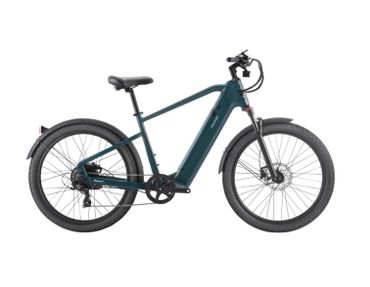

Discover 1
Specifications
FRAMESET - ForkHydraulic suspension with 80mm travel, with Lock-out
FrameAluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders
ELECTRONICS - Motor Hub48V, 500W, max torque 65NmBattery48V, 691Wh, UL 2271 certificatedCellTesla-grade 21700, made by LG/Samsung Charger48V, 3A, operates on 100V-240V AC, 5-6 hours chargingDisplay3.5’’ Backlit LCD display with speed, trip, battery, assist Level and moreUSB Port5V 500mA, output for external devicesThrottle AssistThumb-control, removableHeadlightHigh output integrated LED, adjustable angleTail LightIntegrated with rear fender
SPEED & RANGE Pedal Assist Range65milesThrottle Range58miles
DRIVETRAIN - Chainrings42T Crankset Aluminum alloy, 170mm Cassette 7-speed, 14-28T Chain KMC-Z7Rear Derailleur Shimano RD-TY300, 7-speedShift Lever Shimano SL-TZ50, 7-speed, thumb shifter
BRAKE - Brake Hydraulic disc brakes Rotors 180mm front and rearBrake LeversAluminum Alloy, with adjustable reach and power cutoff switch
WHEEL - RimsDouble-wall aluminum alloy, 36H Tire 26 x 2.5’’, puncture-resistant liner
COCKPIT - Handlebars Aluminum alloy, 31.8mm, 660mm wide on Step-thru, 680mm wide on High-stepGripsDurable ergonomic gripsStemAluminum alloy, velotric customized, 10-degree rise Saddle Velotric urban comfort ergonomic seat, 220mm wide Seat Post Aluminum alloy, 350mm x 30.4mm, quick release clamp
SUPPORTS Fenders Front and rear full coverage Pedals 9/16’’ Alloy platform with reflectors Kickstand Heavy-duty aluminum with wide foot
WEIGHT& LOAD- Bike Weight High-step 65lbs
Step-thru 63.5lbs, Front rack Load Capacity 33 lbs, Rear rack Load Capacity 55 lbs, Max Bike Load 440 lbs

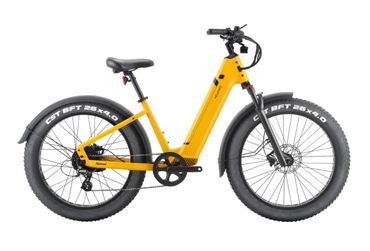

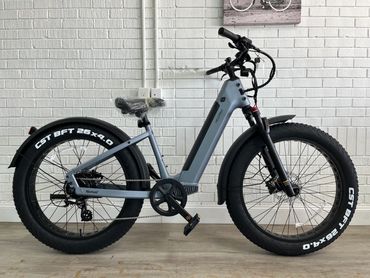

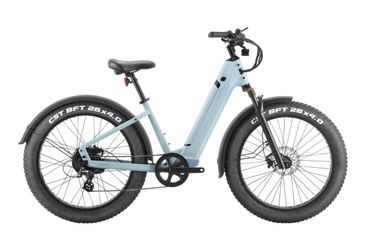

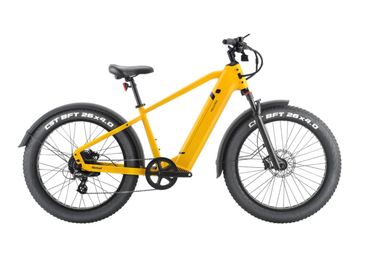

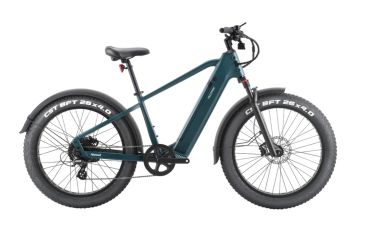

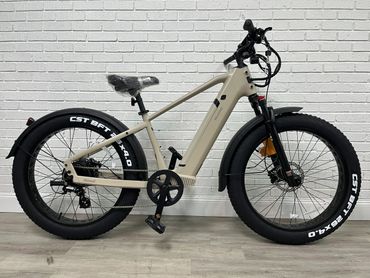

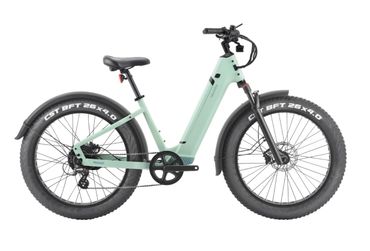

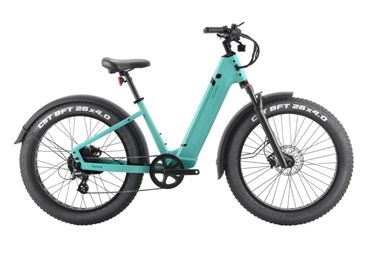

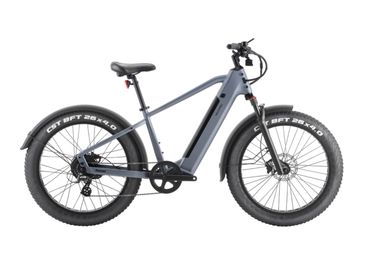

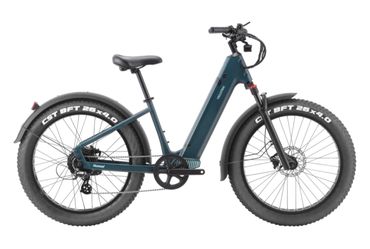

Nomad 1
Specifications
ELECTRONICS
Motor Hub 48V, 750W (peak 1200W), max torque 75Nm Battery48V, 691Wh, UL 2271 certificated CellTesla-grade 21700, made by LG/Samsung Charger48V, 3.0A, operates on 100V-240V AC, 5-6 hr charging
Display 3.5” Backlit LCD display with speed, trip, battery, assist level and more
USB Port 5V 500mA, output for external devices
Throttle AssistThumb-control, removable
Headlight High output integrated LED, adjustable angle
SPEED & RANGE
Pedal Assist Range 55 milesThrottle Range 52 miles
DRIVETRAIN
Chainrings 46T Crankset Aluminum alloy, 170mm Cassette 8-Speed, 13-34T Chain KMC-Z8
Rear DerailleurShimano RD-M310, 8-speedShift LeverShimano SL-M315, 8-Speed, thumb shifter
BRAKE
Brake Hydraulic disc brakes Rotors180mm front and rear Brake Levers Aluminum alloy, with adjustable reach and power cutoff switch
WHEEL
Rims Aluminum alloy, 36H Tire 26 x 4.0”, puncture-resistant liner
COCKPIT Handlebars Aluminum alloy, 31.8mm, 700mm wide
Grips Durable ergonomic Grips StemVelotric customized, 10-Degree rise
Saddle Comfort ergonomic seat, 220mm wide Seat PostAluminum alloy, 350mm x 30.4mm, quick release clamp
SUPPORTS
Fenders Front and rear full coverage Pedals 9/16’’ Alloy platform with reflectors
Kickstand Heavy-duty aluminum with wide foot
WEIGHT & LOAD
Bike Weight High-step 73lbs
Step-thru 72lbs
Front rack Load Capacity 33lbs Rear rack Load Capacity 55lbs Max Bike Load 440lbs

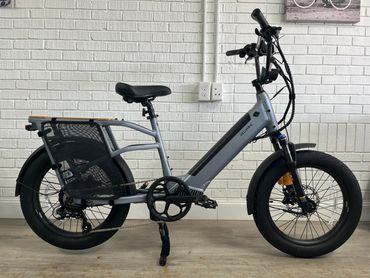

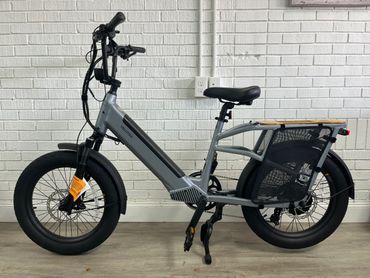

Go 1
Specifications
FRAMESET
Frame Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders
Fork Hydraulic suspension with 60mm travel, 15x110mm thru-axle, with Lock-out
ELECTRONICS
Motor Hub 500W (Peak 900W), 65Nm
Battery 48V, 14.4Ah, 691.2Wh
Cell LG 21700
Charger 48V, 3A, Operates on 100V-240V AC, 50-60Hz
Charging Time 0-80% 4 Hours, 0-100% 6 Hours
Sensor Cadence sensor
Display 3.5" Backlit LCD display with speed, trip, battery, assist Level and more
Security Apple Find My™
USB Port 5V 500mA, output for external devices
Throttle Assist Thumb-control, removable
Headlight 12V/5W/130 Lux high-output integrated LED, 130lux, Adjustable angle
Tail Light Integrated with rear rack, brake highlight
Pedal Assist Eco, Tour, Normal, Sport and Turbo pedal assist
Walk Mode 2.9 MPH
Water Resistant IPX6
WEIGHT& LOAD
Bike Weight 65lbs (29.4kg)
Rear rack Load Capacity 120lbs (54kg）
Max Bike Load 440lbs
SUPPORTS
Fenders Front and rear full coverage
Pedals Plastic
Kickstand Aluminum alloy, dual leg, spring loaded, center mount
SPEED & RANGE
Max Speed 20 MPH, Class 2
Max Speed (Unlock) 25 MPH
Throttle Range Up to 48 miles
Pedal Assist Range Up to 55 miles

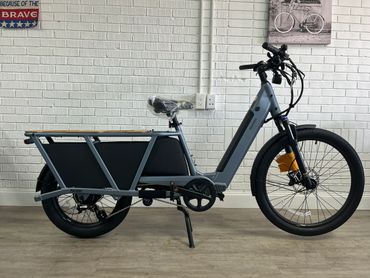

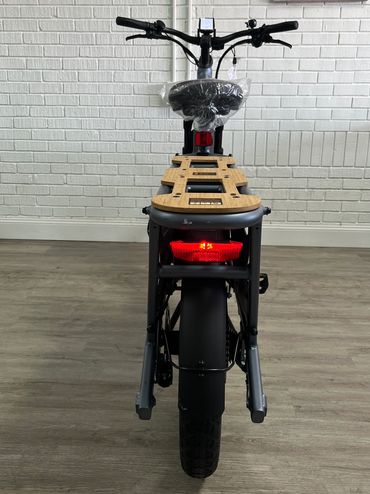

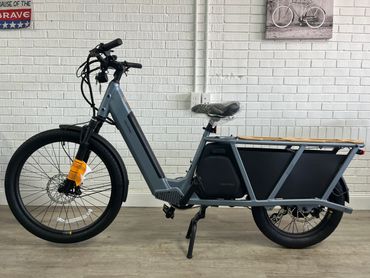

Packer 1
Specifications
FRAMESET
Frame Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders
Fork Hydraulic suspension with 80mm travel, 15x110mm thru-axle, with Lock-out
ELECTRONICS
Motor Hub 750W, Peak 1200W, 75Nm
Battery 48V, 14.4Ah, 691.2Wh
Cell LG 21700
Charger 48V, 3A, Operates on 100V-240V AC, 50-60Hz
Charging Time 0-80% 4 Hours, 0-100% 6 Hours
Sensor Cadence sensor
Display 3.5" Backlit LCD display with speed, trip, battery, assist Level and more
Security Apple Find My™
USB Port 5V 500mA, output for external devices
Throttle Assist Thumb-control, removable
Headlight 12V/5W/130 Lux high-output integrated LED, 130lux, Adjustable angle
Tail Light Integrated with rear rack, brake highlight
Pedal Assist Eco, Tour, Normal, Sport and Turbo pedal assist
Walk Mode 2.9 MPH
Water Resistant IPX6
WEIGHT& LOAD
Bike Weight 75lbs (34.2kg)
Rear rack Load Capacity 176lbs (80kg)
Max Bike Load 440lbs
STORAGE BAG
Storage bag Waterpoof, TSA lock
SUPPORTS
Fenders Front and rear full coverage
Pedals Plastic
Kickstand Aluminum alloy, dual leg, spring loaded, center mount
SPEED & RANGE
Max Speed 20 MPH, Class 2
Max Speed (Unlock) 25 MPH
Throttle Range Up to 45 miles
Pedal Assist Range Up to 52 miles
Hill Grade Throttle only: 10° (18%)
Pedal Assist: 12° (21%)
DRIVETRAIN
Chainrings 46T
Crankset Aluminum alloy, 170mm
Cassette 8-speed, 13-34T
Rear Derailleur SHIMANO M310-8
Shift Lever SHIMANO M315-8
Chain KMC Z8.3
BRAKE
Brake Hydraulic Disc Brake 4-Piston
Rotors 180mm front and rear
Brake Levers Aluminum Alloy, with adjustable reach and power cutoff switch
WHEEL
Rims Double-wall Aluminum alloy, (F) 26" disc x 36 hole / (R) 20" disc x 36 hole
Front Hub NOVATEC Aluminum alloy J-hook disc hub,15x110mm thru-axle
Tire (F) CST 26x2.4" (R) CST 20x3.0" Ebike puncture resistant tires
COCKPIT
Handlebars 6061 Aluminum alloy, Φ31.8mm, 680mm
Grips Durable ergonomic grips
Stem 6061 Aluminum alloy, 3D-forged alloy, angle adjustment 60 degrees, 31.8mm clamp，90mm length
Saddle VELOTRIC urban comfort ergonomic seat
Seat Post 6061 Aluminum alloy, 30.4 x 350mm, quick release clam

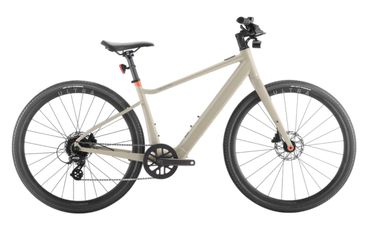

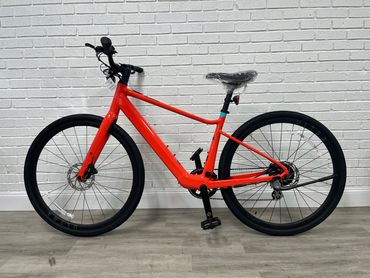

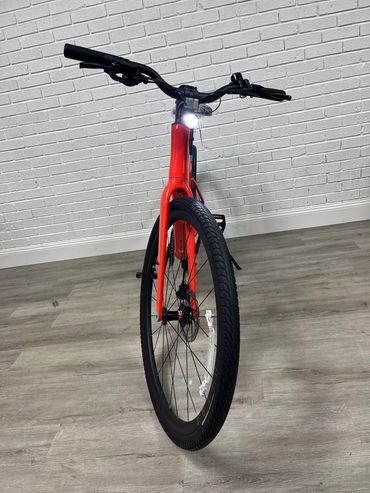

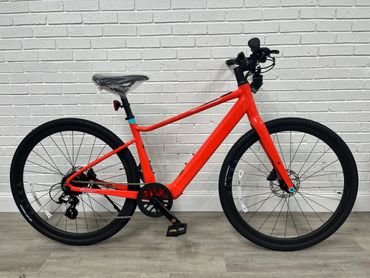

Thunder ST 1
Specifications
FRAMESET
Frame 6061 Triple-Butted Aluminum Alloy Frame, Integrated Cable Routing, Internal Battery, Flat Mount Disc, Rack and Fenders Compatible
Fork 6061 Aluminum Alloy, Internal Brake Routing, 12x100mm Thru-Axle, 1-1/4” to 1-1/8” Tapered Steerer，Fenders Compatible
ELECTRONICS
Motor Hub 350W, Peak 600W, 45Nm
Battery 36V, 9.8Ah, 352.8Wh
Cell Samsung 21700
Charger 36V, 2.0A, Operates on 100V-240V AC, 50-60Hz
Charging Time 0-80% 4 Hours, 0-100% 6 Hours
Sensor Torque Sensor
Control Panel Battery Indicator
PAS Indicator
Auto Headlight
Auto Brightness Control
Security Apple® Find My™
Headlight Light Sensing, 6V/3W/45Lux High-Output Integrated LED, Adjustable Angle
Pedal Assist Eco,Tour, Normal, Sport and Turbo pedal assist
Walk Mode 2.9 MPH
Water Resistant IPX6
WEIGHT& LOAD
Bike Weight 36lbs
Max Bike Load 330lbs
ACCESSORIES
Fenders Supported, buy separately from VELOTRIC
Rear Rack Supported, buy separately from VELOTRIC
Range Extender N/A
SPEED & RANGE
Max Speed 20 MPH, Class 1
Max Speed (Unlock) 25 MPH
Max Range Up to 52 miles
Chainrings PROWHEEL Pro Aluminum Alloy, 42T Narrow Wide Chainring
Crankset Aluminum Alloy, 165mm
Cassette SHIMANO 8 Speeds, 11-32T
Rear Derailleur SHIMANO M310-8
Shift Lever SHIMANO M315-8
Chain KMC Z8.3
BRAKE
Brake TEKTRO HD-R280 Hydraulic Disc Brake
Rotors 160mm Front and Rear
Brake Levers TEKTRO HD-R280 Aluminum Alloy, with adjustable reach
WHEEL
Rims 700c disc, Double-Wall Aluminum Alloy, Pinned (F) 24 Hole / (R) 28 Hole
Front Hub NOVATEC Aluminum Alloy J-Hook Disc Hub,12x100mm Thru-Axle
Tire 700×40c Ebike Puncture Resistant Tires
COCKPIT
Handlebars 6061 Aluminum Alloy, Φ31.8mm, 680mm
Grips VELOTRIC Ergonomic Comfort Grips
Stem 6061 Aluminum alloy, 3D-forged alloy, 8-degree rise, 31.8mm clamp, Garmin mount compatible
Saddle Velotric Comfort, Customized by SELLE ROYAL
Seat Post 6061 Aluminum Alloy, 30.9 x 300mm
SUPPORTS
Phone Mount Adapt GoPro/Garmin
Pedals Plastic
Kickstand Aluminum Alloy
